Q1.

Maria, a member of her school’s innovation team, is passionate about improving energy efficiency.  Her latest project involves designing a Smart Cooling System to enhance airflow in the classroom.  Instead of keeping the fans running all day, Maria chooses to use a DHT22 temperature sensor along with two exhaust fans, each with a power rating of 75W.

She designs a logic-based system:

  • Fan 1 switches ON when the temperature exceeds 30°C

  • Fan 2 switches ON only when the temperature rises above 32°C

To test the system, Maria records the classroom temperature every 30 minutes from 12:00 PM to 3:00 PM:

Time Slot  Temperature (°C)
12:00 – 12:30 PM  29
12:30 – 1:00 PM  31
1:00 – 1:30 PM  33
1:30 – 2:00 PM  33
2:00 – 2:30 PM  32
2:30 – 3:00 PM  30

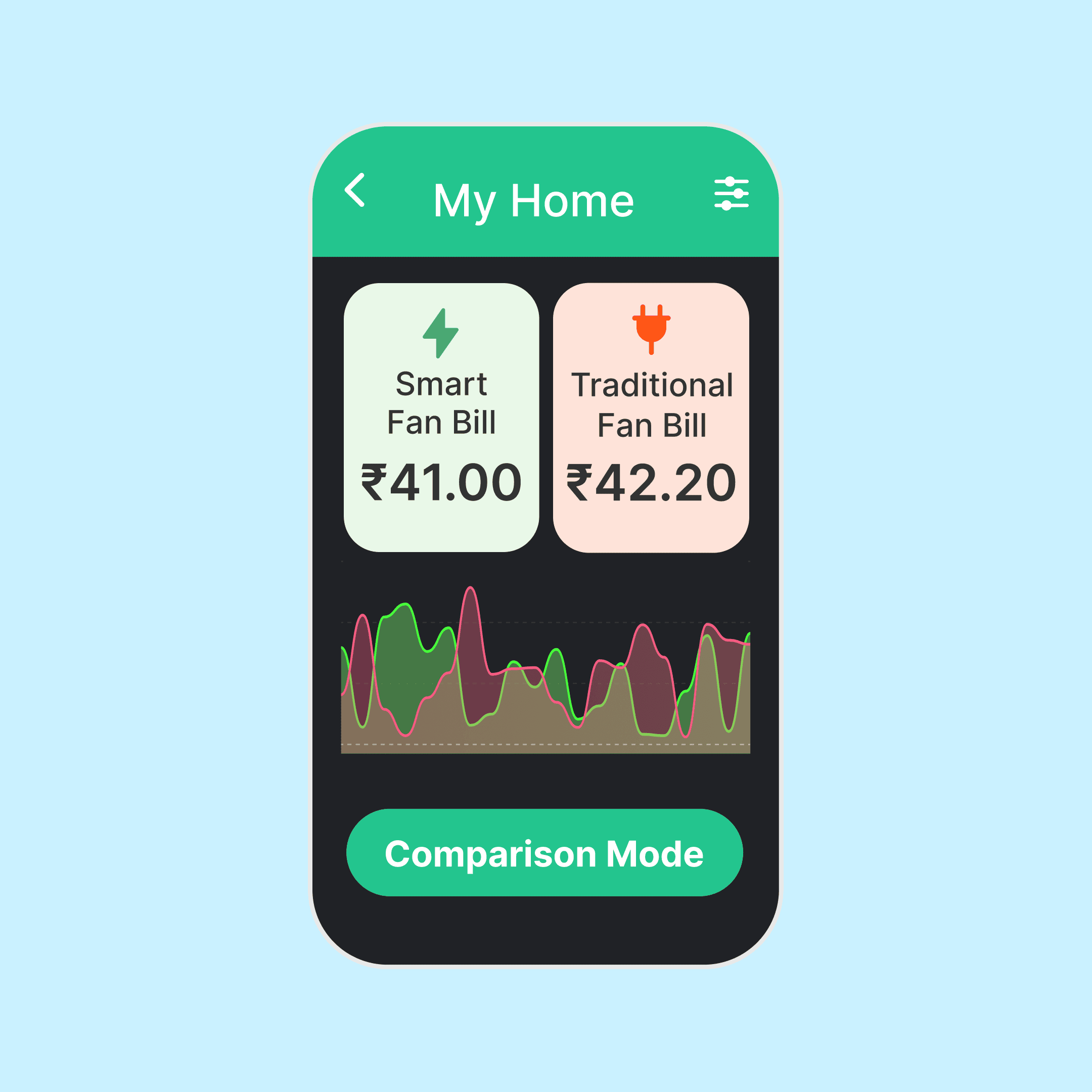

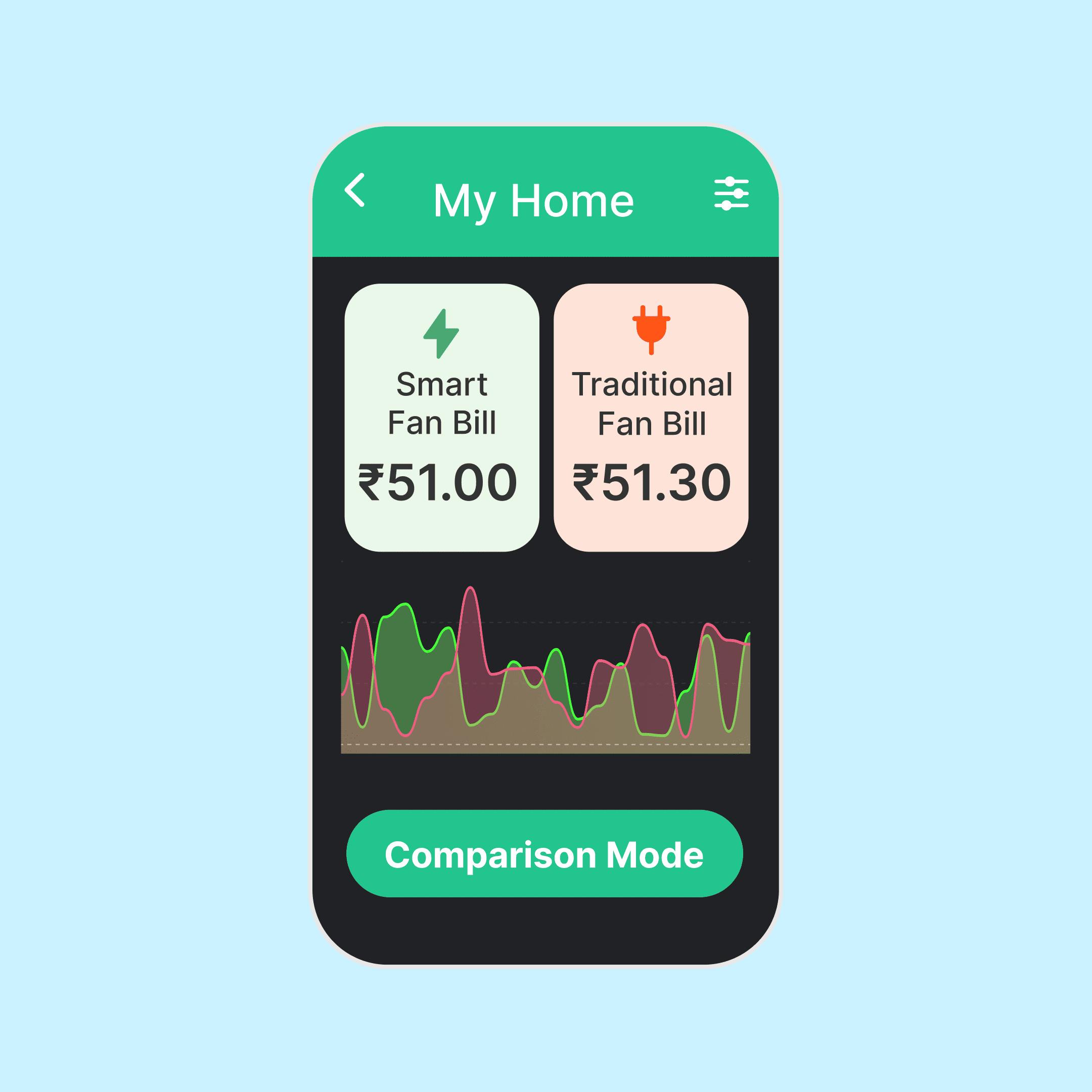

The local electricity board charges ₹7 per unit (1 unit = 1000 watt-hour or 1 kWh). Maria wants to compare the electricity costs to understand how much she saved compared to using a traditional fan. She tracks the daily electricity usage using a mobile app she developed. Which of the following bills accurately reflect the difference in the bill amount?

Quiz options
Store
Store
Store
Store

Q2.

Vihaan is always eager to create innovative solutions that simplify everyday life. He decides to build a Smart Fan System for his study room. He uses a DHT11 temperature sensor connected to a basic microcontroller and sets a simple rule: the fan should turn ON only when the temperature rises above 30°C.

He used a fan with a power rating of 100W, and the electricity provider charges ₹6 per unit (1 unit = 1000 watt-hour or 1 kWh). To test his setup, Vihaan runs the system from 3:00 PM to 6:00 PM, checking the temperature every 30 minutes:

Time Slot  Temperature (°C)
3:00 – 3:30 PM  29
3:30 – 4:00 PM  31
4:00 – 4:30 PM  32
4:30 – 5:00 PM  30
5:00 – 5:30 PM  28
5:30 – 6:00 PM  27



Vihaan wants to compare the electricity costs to understand how much he saved compared to using a traditional fan. He tracks the electricity usage through a mobile app he developed. Which of the following bills accurately reflect the difference in the bill amount?

Quiz options
Store
Store
Store
Store

June 20, 2025

Q1.

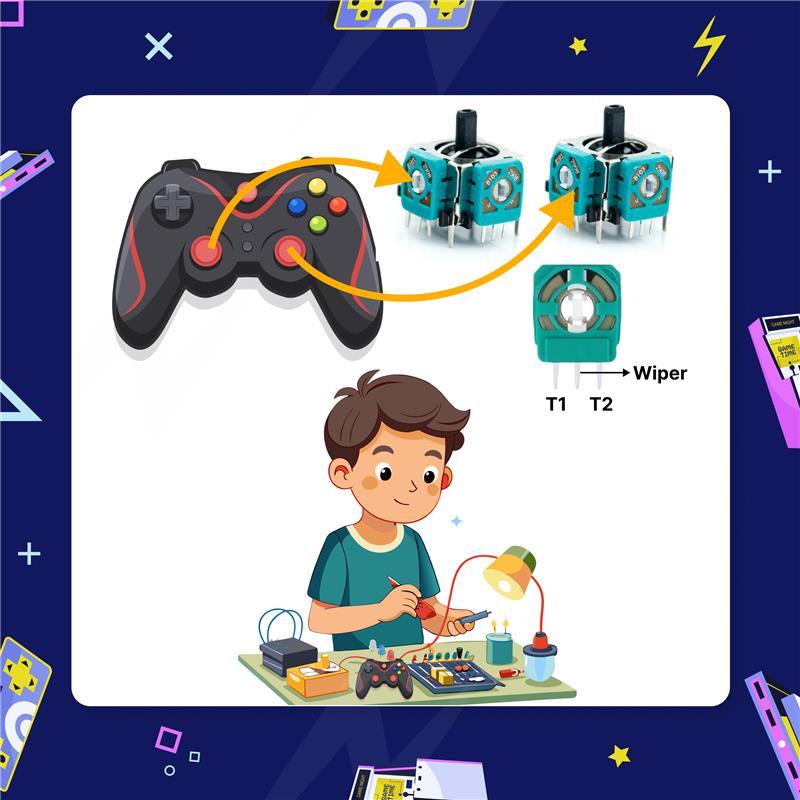

You’re building a custom game controller that uses potentiometers.  Each joystick contains two potentiometers, one for the x-axis and the other for the y-axis, which allow accurate direction control and smooth maneuvering of the toy plane.

The custom controller you're building contains two joysticks to manage multiple control functions. This setup requires a total of four potentiometers, for example:



For example:

  • Left X-axis potentiometerControls the toy plane’s up and down movement

  • Left Y-axis potentiometerControls the toy plane’s left and right movement left and right

  • Right X-axis potentiometerMoves the toy plane forward and backward

  • Right Y-axis potentiometerRetracts and extends the landing wheels

You originally intended to use 10  (Kilo) potentiometers in all positions. However, one of them has been mistakenly replaced with a 1  (Kilo) potentiometer. This will affect its sensitivity and the amount of current it draws from the power supply.

Potentiometer Wiring Setup

Each potentiometer is connected as a voltage divider:

  • One end is connected to 5 V (Vcc)

  • The other end to 0 V (GND)

  • The wiper (middle pin) is connected to an analog input pin on a microcontroller

The microcontroller features a 10-bit ADC:

  • ADC values range from 0 to 1023

  • This corresponds to voltages ranging from 0 V to 5 V

Instructions for Calculation

Ohm’s Law:

V=I×R

Where:

  • R is resistance (in ohms, Ω)

  • V is voltage (in volts, V)

  • I is current (in amperes, A)

Note: The output voltage is a fraction of 5 V, based on the ratio of the ADC reading to 1023.

Your Task

Using the explanation above, determine which potentiometer is the 1 .
Show your working or briefly explain your reasoning.

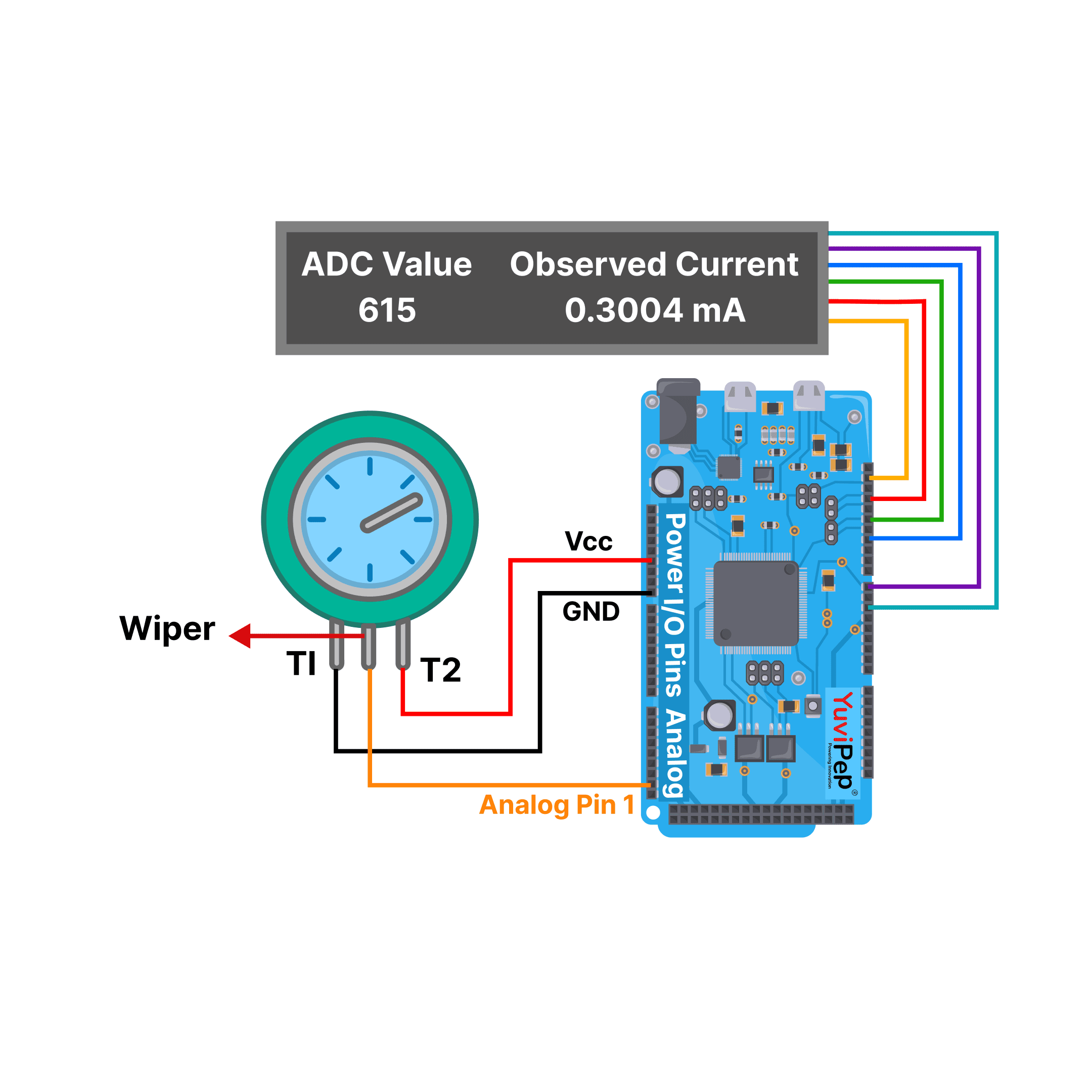

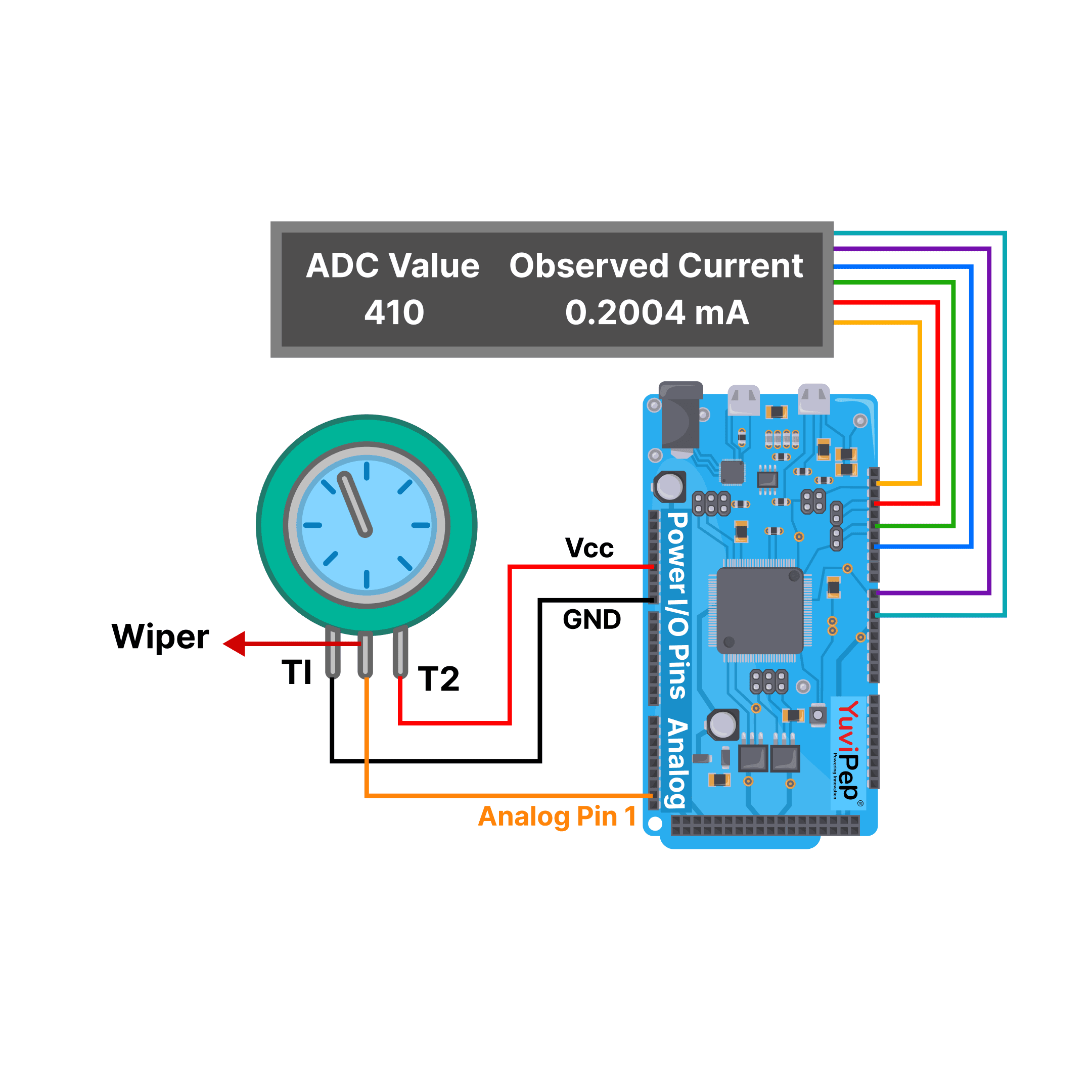

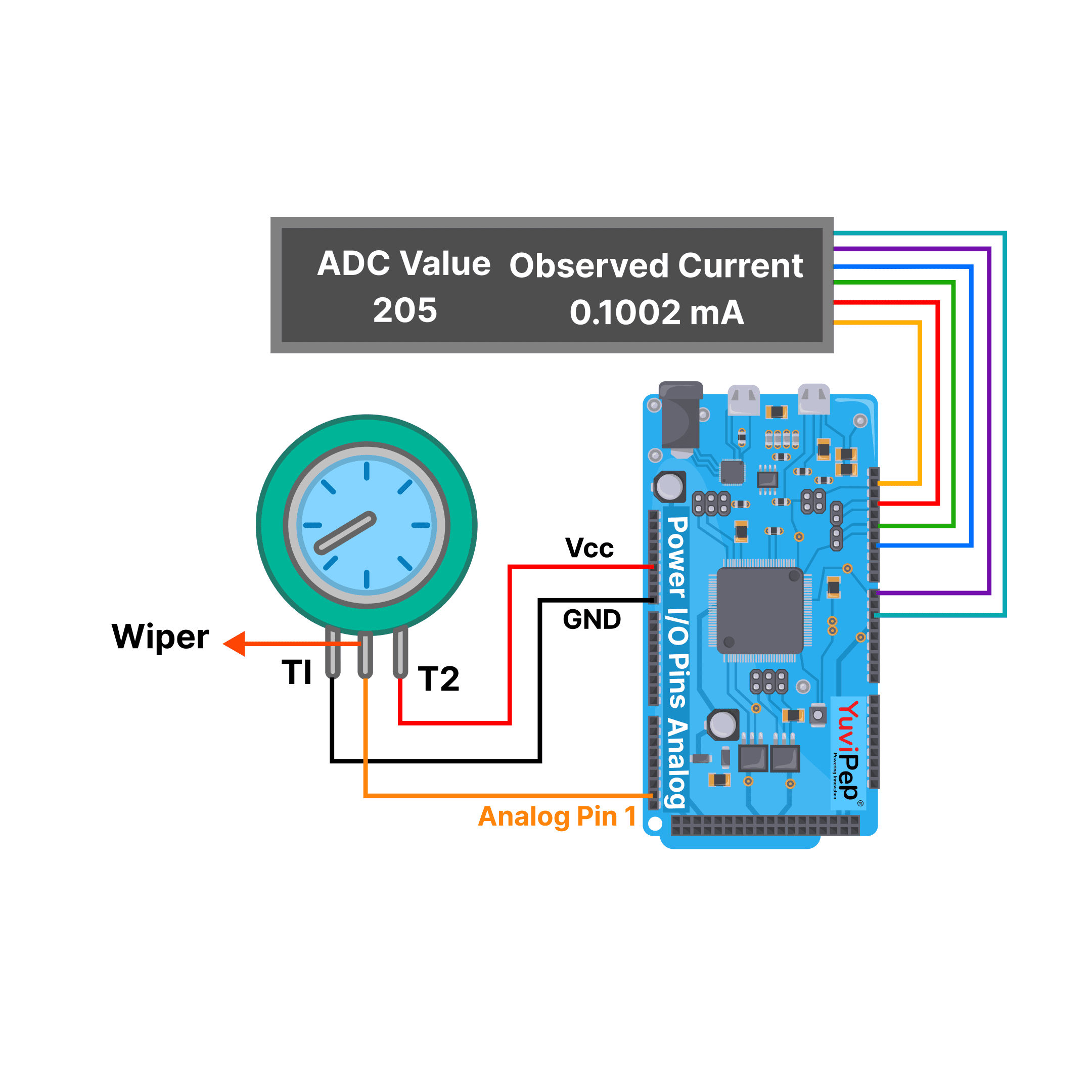

Measured Data from the Four Potentiometers

Quiz options
Store
Store
Store
Store

Q2.

You’re building a custom game controller that uses potentiometers.  Each joystick contains two potentiometers, one for the x-axis and the other for the y-axis, which allow accurate direction control and smooth manoeuvring of the toy plane.

The custom controller you're building contains two joysticks to manage multiple control functions. This setup requires a total of four potentiometers, for example:

  • Left X-axis potentiometer  Controls the toy plane’s up and down movement
  • Left Y-axis potentiometerControls the toy plane’s left and right movement

  • Right X-axis potentiometerMoves the toy plane forward and backward

  • Right Y-axis potentiometerRetracts and extends the landing wheels



Wiring Setup

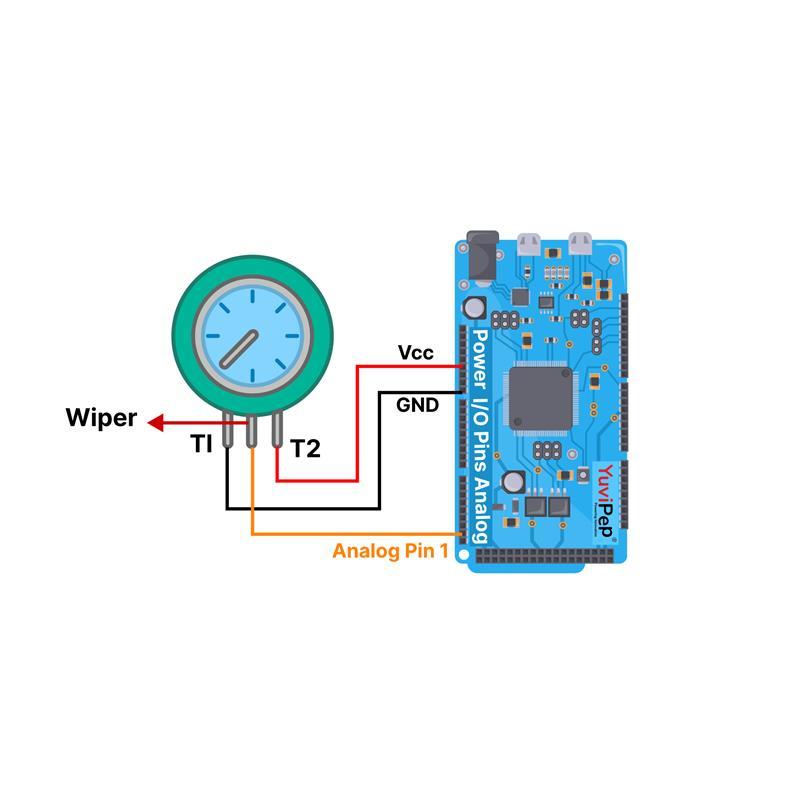

Each potentiometer in the setup is hooked up like a voltage divider.

One end is connected to 5 volts (Vcc),

The other is grounded at 0 V,

The middle pin,called the wiper,is connected to one of the microcontroller’s analog inputs.

The microcontroller uses an ADC (Analog to Digital Converter) to convert the voltage from the wiper into a digital value ranging from 0 to 1023, where:

  • 0 represents 0 V

  • 1023 represents 5 V

The Problem

During testing, you observe that only one of the four potentiometers is working as expected, producing varying analog readings in response to joystick movement. The remaining three, however, either show constant values or don’t respond at all.

You suspect there may be a wiring issue with these potentiometers — possibly due to incorrect connections or a faulty setup.

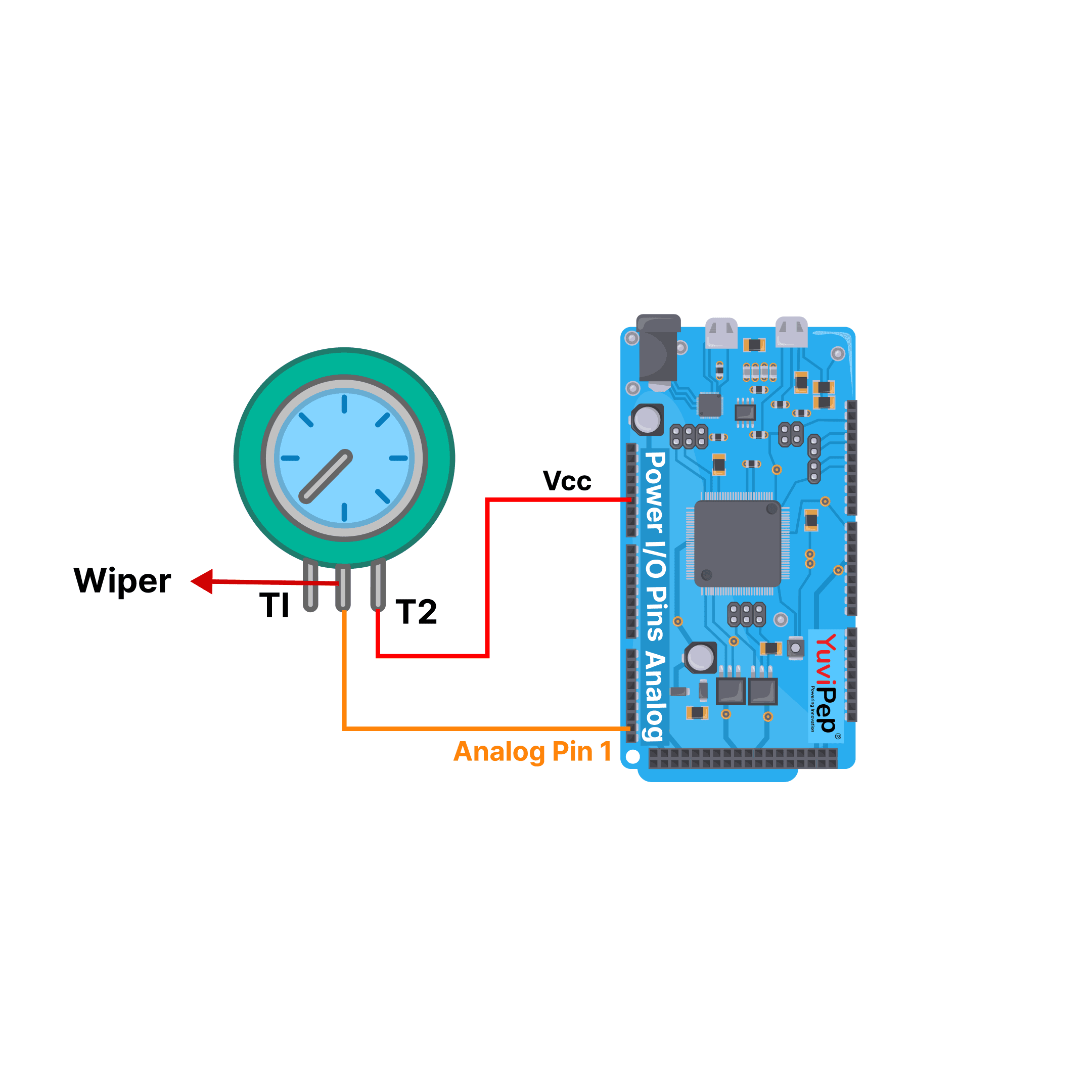

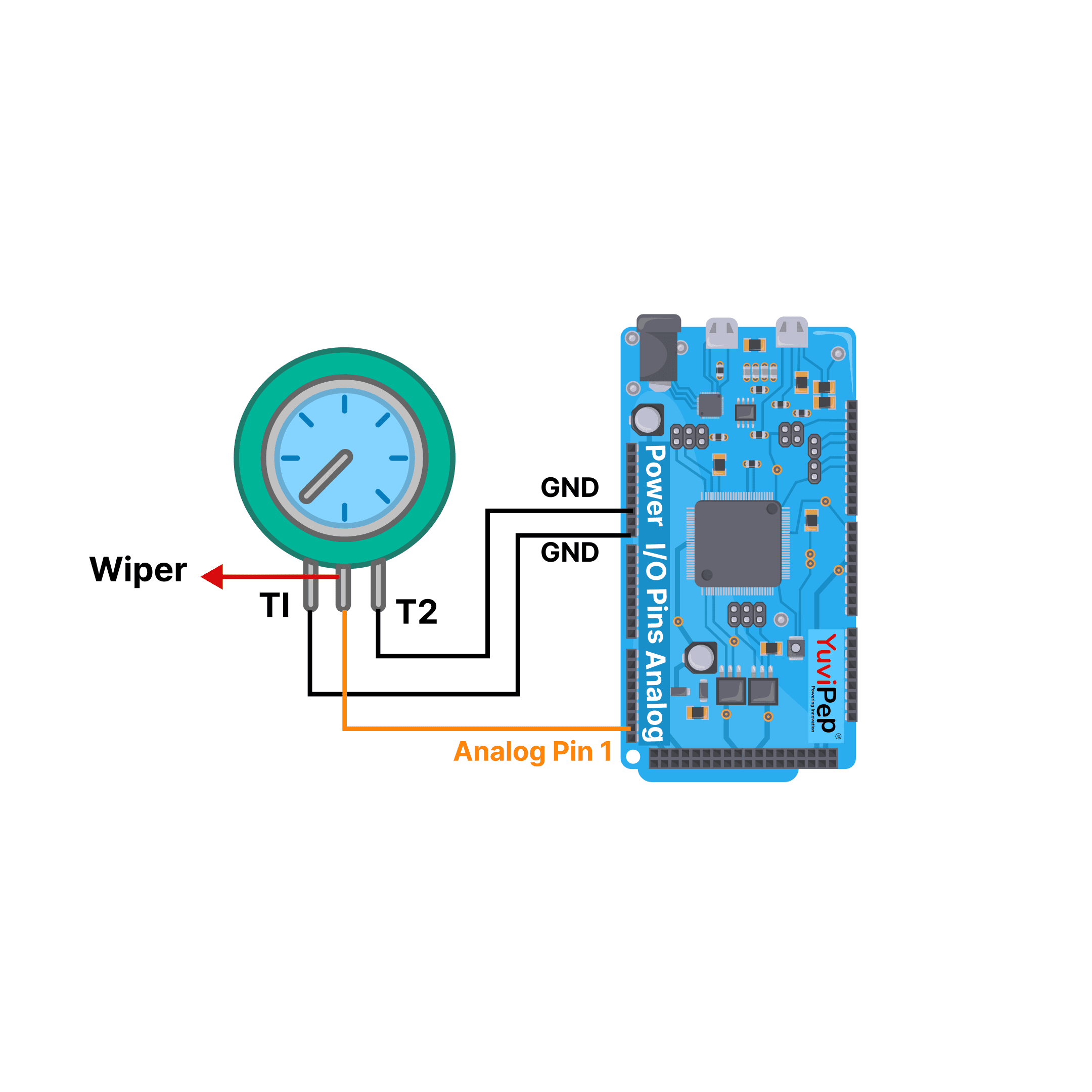

Based on the potentiometer wiring configurations given below, identify which one is functioning correctly.

Quiz options
Store
Store
Store
Store
